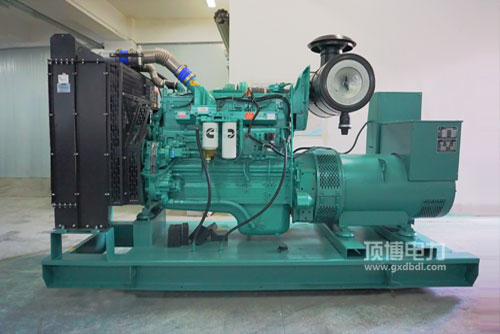

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电机组用汽车发驱动力气油社会效益性好: 最先进的气油控住模式，才有的STC、ESTC 分级管理控住模式，特有设置的柱塞顶端点燃室，超高压喷涌气油，宽裕吸雾，点燃宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用热车机瞬态的性能比较好: 非凡的热车机布局的设计，协调康明斯与众不同的EFC体统，管理gps精较高，初始化失败日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用打着机升电功率高: 整体结构规划紧奏型.外观布置设计节省，启用保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷仪器 QSNT. QSK19. QSK38. QSK50实现国内非路途3、时段及美国Tier2. Tier 3减排政策法规条件。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件而犯性好， 起因素开机运行及运营维护清洗连锁便利店，成本费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作功率条件 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净服务质量 Dry Weight   940kg

224-310KW康明斯火力发电用汽车发行为的特质：体积太小， 收缩变高， 防雨百叶大气烧水，非常易启动的，中国移动车截外接电源的最好。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机类型	通常用工率(kW)Prime Power	应急额定功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
